Logan & Morreale (1994) demonstrated that sea turtles possess hydrofoil design elements that maximize laminar flow and minimize drag over their surfaces. Because water flow velocity is greatest over the anterior and vertebral regions of the carapace, one would assume these areas to be more desirable locations for filter-feeding barnacles to settle, in order to increase their feeding potential. Several studies have illustrated concentrations of C. testudinaria in this region of the carapace (Caine 1986; Matsuura & Nakamura 1993; Frick et al. 1998; Schärer 2003; Pfaller et al. 2006), and it has been presumed they preferentially settle there. However, studies of the shore barnacle Amphibalanus amphitrite, a common epibiont of loggerhead turtles (Caretta caretta) in the southeastern U.S. (Pfaller et al. 2006), show that its cyprid larvae actively settle or move into areas of moderate albeit not high water flow (Crisp 1955; Mullineaux & Butman 1991). Barnacles in the lower flow posterior and marginal regions of the carapace do not experience the same foraging potential as barnacles that have settled in areas of greater water flow. It is advantageous for a barnacle to be able to respond to stimuli, such as current or water velocity, in its environment. Some adult sessile barnacles possess the ability to reorient by rotating on their basis, or to be moved short distances by lateral pressure of a neighbor. On the other hand, some pedunculate barnacles, such as Capitulum mitella and Pollicipes pollicipes, can relocate by extending their peduncles down the bodies of conspecifics on which they had settled to the substratum (Hoffman 1989; Kugele & Yule 2000). Here we report that C. testudinaria is capable of substantial post-settlement locomotion, generally from areas of relatively low to higher current flow.

Table 1. Summary of movement rates (mm*d-1) of 9 individual Chelonibia barnacles on a green turtle (#3) for each time period.

Figure 1. Change in average movement rate per day of Chelonibia testudinaria on green turtle #3 from January to May 2005, with standard deviations.

Observations of three juvenile green turtles were made from 2003-2006 on a near-shore rocky hard bottom off of Boca Raton, Florida, in waters between 1 and 6 meters deep. A Sony Cybershot P-73 4.1 mega pixel digital camera was used to take a time series of photographs of the turtles. Individual turtles were identified by scute arrangements on the head, carapace, and flippers, and from shell anomalies and deformations.

Casual inspection of the photographs indicated that the barnacles were moving on the carapace of these turtles over a period of months. To investigate this, we assembled a series of photographs for each of the three turtles. An in-water estimate of turtle carapace length (straight length) was made and all subsequent measurements are relative to that measurement. We measured the time period (in days) between photographs and calculated the barnacle movement rate by measuring the change in position of the barnacle from the preceding photograph (Table 1; Figure 1). To avoid scaling issues between photographs, we determined the location of each barnacle throughout the series by comparing the center point of the barnacle to the adjacent scute margins. These points were plotted onto the first image in each movement sequence. The three composite images were analyzed using Image J photo processing software, where we measured the carapace length and the relative change in position of the center of each barnacle. Simple linear regression was used to find out if initial barnacle diameter predicts movement rate. Barnacle mortality was determined by the disappearance of barnacles. Daily survival rates were calculated using DSR=1-(#deaths/#animal days).

Average barnacle movement rate varied from 1.4 to 0.27 mm per day throughout several time periods (Table 1). The average movement of barnacles on turtle # 3 increased and then decreased as the year progressed from January to May (Fig. 1). Barnacle diameter was not a significant predictor of movement rate (p = 0.38, R2 = 0.036).

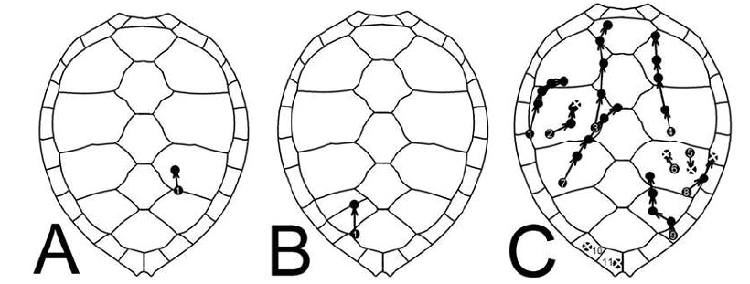

Figure 2. Diagram showing the position of Chelonibia testudinaria on the carapace of green turtles # 1 (A), # 2 (B), and # 3 (C) as dark circles. Arrows indicate relocation to the subsequent position by the start of the next time period. An “X” indicates that the barnacle died by the beginning of the subsequent time period.

Barnacles on turtles # 1 and # 2 moved anteriorly and medially (Fig. 2A & 2B). Eighty-eight percent (n=8) of barnacles on turtle # 3 (n = 11; Figure 2C) relocated to a more anterior position on the carapace. Of those, 87.5% (n=8) relocated medially and 12.5% (n=8) moved laterally (Fig. 2C). All eight of the barnacles that moved anteriorly on turtle # 3 deviated in direction no more than ± 61º from the longitudinal axis of the barnacle (bearing 0º corresponding with the anterior end of the turtle) (Table 2). Of the barnacles on turtle # 3, 55% experienced mortality during the 110 day observation period - resulting in a 0.992 daily survival rate. Out of the four barnacles that were positioned on the marginal scutes of turtle # 3 (Fig. 2C), 75% experienced mortality. Two deaths occurred during the first time period so no movement was recorded for these individuals (Barnacle #’s 10 & 11; Fig. 2C).

Table 2. Directional movement of individual barnacles on green turtle #3. Each point indicates the bearing at which Chelonibia testudinaria traveled during each time period. 0º bearing indicates anterior movement.

A turtle’s swimming motion and shape causes water to flow over the carapace in a manner that minimizes recruitment of epibionts, especially in the high flow anterior region (Logan & Morreale 1994). The lower shear stress environment on the posterior region of the carapace increases the likelihood for cyprid settlement to occur (Mullineaux & Butman 1991); however, these individuals are in a less optimum position for feeding as they experience turbulence caused both by the shape of the shell as well as other epibionts located anteriorly. Micro-eddies created by adjacent epibionts would alter flow direction (Pfaller et al. 2006). In addition, barnacles located posteriorly to other barnacles may receive less particulate matter as it may be consumed before it reaches them. The high incidence of anterior and medial repositioning of C. testudinaria indicates that the barnacles are actively seeking an alternative, presumably more favorable attachment site as they grow. Thus, while differential recruitment may still be a factor in initial settlement (Pfaller et al. 2006), it apparently is not the sole factor influencing the survival of C. testudinaria.

Barnacles #5 and #8 on turtle #3 displayed movement patterns not observed in the other turtles. Barnacle #5 moved posteriorly while barnacle #8, which was positioned only a few mm behind #5 moved laterally instead of medially (Fig. 2C). It is possible that turbulence from adjacent barnacles disrupted the stimulus (e.g. water flow) that directs repositioning, resulting in movement. However, additional observations of barnacle movement patterns on other turtles will be needed to determine the cause of this unusual movement.

Figure 2C demonstrates that barnacles change location relative to other individuals on the same scute, thus moving independently of each other. Individuals frequently move across several scutes. As scutes grow and are periodically shed, small barnacles not in sutures, and individuals mostly attached to areas being shed, are lost in the process. This is evidently not a significant cause of mortality in large individuals, which are more frequently knocked off of the turtle’s carapace by their rubbing against reef structures (Frick & McFall 2007). Because the rate at which barnacles relocate is not sufficient to escape removal by the host turtle, barnacle movement is not thought to avoid self-grooming by turtles. However, since barnacles can move substantial distances, “barnacle pattern documentation” might not be a feasible means by which to identify individual sea turtles, even over a relatively short time-span.

Figure 3. Green turtle # 1 bearing the gray locomotion trail of a relocated Chelonibia testudinaria.

Gray locomotion trails of C. testudinaria indicate the direction and distance traveled by the barnacle (Fig. 3). It appears C. testudinaria leaves behind a cementing substance similar to that described by Kugele & Yule (1993) when the barnacle Pollicipes pollicipes relocates. Pollicipes moves by base extension in a directional manner via cementing of the leading edge (rostrum) while simultaneously sloughing the trailing edge (carina). Muscular activity is not believed to be involved. However, Kugele & Yule (2000) demonstrated that Capitulum barnacles move quite differently. While sloughing is believed to account for the release of the trailing edge, the leading edge appears to advance via muscular activity.

Certain balanomorph barnacles, like Semibalanus balanoides, can be induced to move laterally short distances by applying pressure to one side (Crisp & Bourget 1985). It has a membranous basis like C. testudinaria and its wall is held down to the basis by fibrils canting inward at about 40°. Each fibril includes a contractile portion which relaxes during each growth increment (Gutmann 1960). Chelonibia testudinaria likely grows in the same fashion. If so, the process provides a plausible hypothesis for locomotion in C. testudinaria. In other words, unequal contraction of the fibrils immediately following each growth increment, with minimal tension at the trailing or carinal end and maximum tension at the leading or rostral end of the animal, advances the shell forward with each growth increment. For examples of sequential photos depicting barnacle movements on turtles 1, 2 and 3, please see .

Acknowledgements: We thank William A. Newman of the Scripps Institution of Oceanography for his time, enthusiasm and invaluable assistance with this manuscript. Also, many thanks to Mike Frick for his editing and formatting help, Dana Bethea for her comments on an earlier version of this paper, and Kirt Rusenko for his encouragement and leadership of the Boca Raton Sea Turtle Program. We thank the two anonymous reviewers whose comments helped to greatly improve this manuscript.

BUGONI, L., L. KRAUSE, A.O. de ALMEIDA & A. PáDUA BUENO. 2001. Commensal barnacles of sea turtles in Brazil. Marine Turtle Newsletter 94:7-9.

CAINE, E.A. 1986. Carapace epibionts of nesting loggerhead sea turtles: Atlantic coast of U.S.A. Journal of Experimental Marine Biology & Ecology 95: 15-26.

CRISP, D. J. 1955. The behaviour of barnacle cyprids in relation to water movement over a surface. Journal of Experimental Biology 32: 569-590.

CRISP, D.J. & E. BOURGET. 1985. Growth in barnacles. Advances in Marine Biology 22: 199-244.

FRICK, M.G., K.L. WILLIAMS & M. ROBINSON. 1998. Epibionts associated with nesting loggerhead sea turtles (Caretta caretta) in Georgia, USA. Herpetological Review 29: 211-214.

FRICK, M.G. & G. McFALL. 2007. Self-grooming by loggerhead turtles in Georgia, USA. Marine Turtle Newsletter 118:15.

GUTMANN, W. F. 1960. Funktionelle morphologie von Balanus balanoides. Abh. Senckenb. Naturforsch. Ges. 500:1-43.

HOFFMAN, D. L. 1989. Settlement and recruitment patterns of a pedunculate barnacle, Pollicipes polymerus Sowerby, off La Jolla, California. Journal of Experimental Marine Biology & Ecology 125: 83-98.

IMAGE J. 2007. Image Analysis Tool, version 1.37. Wayne Rasband. National Institutes of Health, USA. http://rsb.info.nih.gov/ij/

KUGELE, M., & A. B. YULE. 1993. Mobility in lepadomorph barnacles. Journal of the Marine Biological Association of the United Kingdom. 73: 719-722.

KUGELE, M., & A. B. YULE. 2000. Active relocation in lepadomorph barnacles. Journal of the Marine Biological Association of the United Kingdom. 80, 103-111.

LOGAN, P. & S. J. MORREALE. 1994. Hydrodynamic drag characteristics of juvenile L. kempi, C. mydas, and C. caretta. In: B. A. Schroeder & B. E. Witherington (Comps.). Proceedings of the Thirteenth Annual Symposium on Sea Turtle Biology and Conservation. NOAA-Tech. Memo. NMFS-SEFSC-341, pp. 248-252.

MATSUURA, I. & K. NAKAMURA. 1993. Attachment pattern of the turtle barnacle Chelonibia testudinaria on carapace of nesting loggerhead turtle Caretta caretta. Nippon Suisan Gakkaishi 59: 1803.

MULLINEAUX, L. S. & C. A. BUTMAN. 1991. Initial contact, exploration and attachment of barnacle (Balanus amphitrite) cyprids settling in flow. Marine Biology. 110: 93-103.

PEREIRA, S., E.H.S.M. LIMA, L. ERNESTO, H. MATTHEWS & A. VENTURA. 2006. Epibionts associated with Chelonia mydas from Northern Brazil. Marine Turtle Newsletter 111:17-18.

PFALER, J.B., K.A. BJORNDAL, K.J. REICH, K.L. WILLIAMS & M.G. FRICK. 2006. Distribution patterns of epibionts on the carapace of loggerhead turtles, Caretta caretta. JMBA2-Biodiversity Records. <http://www.mba.ac.uk/jmba/pdf/5381.pdf>
